- Advanced Technology DSP, IGBT Components
- Wide Input Range, Robust Design For Harsh Environment
- Multi-CPU and Software/Hardware Cooperate Control
- DC Start Function, Can Be Started Without AC
- True Galvanic Isolation Design
- Modular Design for Easy Maintenance and Minimise MTTR
- Intelligent, Safe and Unique Battery Management System

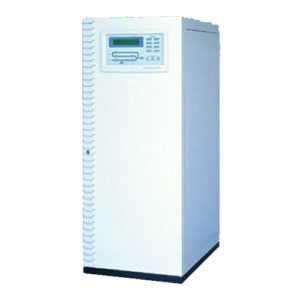

TRIX 3Phase UPS
Specifications
PHASE | 3-Phase Input / 3-Phase Output | |||||||||||||
TRIX 10K | TRIX 20K | TRIX 30K | TRIX 40K | TRIX 50K | TRIX 60K | TRIX 80K | TRIX 100K | TRIX 120K | TRIX 160K | TRIX 240K | TRIX 320K | TRIX 400K | ||
KVA | 10 | 20 | 30 | 40 | 50 | 60 | 80 | 100 | 120 | 160 | 240 | 320 | 400 | |
INPUT (RECTIFIER) | ||||||||||||||
Input Voltage | 220V / 380V / 400V / 415V / 440V / 480V, 3p4w or 3p3w | |||||||||||||
Input Range | + / – 20% ( > +/- 20% is available upon request) | |||||||||||||
Input Frequency | 50 / 60 Hz + / – 5Hz | |||||||||||||
Power Walk In | 0% – 100% : 20 sec | |||||||||||||
Efficiency | > 98% | |||||||||||||
Voltage Regulation | + / – 1% | |||||||||||||
BATTERY | ||||||||||||||
Battery Type / Pcs | Maintenance free lead-acid batteries / 12V x 29pcs | |||||||||||||
Maximum Charge Current Adc (Selectable) |
5 | 10 | 15 | 20 | 25 | 30 | 40 | 50 | 60 | 80 | 120 | 160 | 200 | |
Battery Start | UPS can be started without AC source | |||||||||||||
INVERTER | ||||||||||||||
Output Voltage | 220V / 380V / 400V / 415V / 440V / 480V, + / – 1 %, 3p4w or 3p3w | |||||||||||||
Wave Form | Sine Wave | |||||||||||||
Output Power Factor | 0.8 | |||||||||||||
Frequency Lock Range | 50 / 60 Hz + / – 3Hz | |||||||||||||
Output Frequency (Free Running) | 50 / 60 Hz + / – 0.1 Hz | |||||||||||||
Phase Shift Under 100% Unbalance Load | < 0.5° | |||||||||||||
THD (Linear Load) | < 2 % | |||||||||||||
Overload | <110% | Continuous | ||||||||||||
110 – 125% | 15 minutes | |||||||||||||
125 – 150% | 10 minutes | |||||||||||||
> 150% | 30 seconds | |||||||||||||
Efficiency (100% Load) | 93% | 93.5% | 94% | 94.5% | 95% | |||||||||
STATIC SWITCH | ||||||||||||||
Voltage Range | 173-277 VAC (L-N) | |||||||||||||
Mains ↔ Inverter | 0 ms | |||||||||||||
OVERALL CHARACTERISTICS | ||||||||||||||
Overall Efficiency | 91% | 91.5% | 92% | 92.5% | 93% | |||||||||
Maximum Heat Dissipation (Kw) | 1.1 | 1.3 | 1.9 | 2.6 | 3 | 3.5 | 4.6 | 5.4 | 6.5 | 8.7 | 13 | 17.4 | 21.7 | |
Height x Width x Depth (mm) | 1600 x 550 x 800 | 1600 x 1100 x 800 | 1600 x 2200 x 800
w3300 [400K] |
|||||||||||
Weight (Kg, without battery) |
270 | 300 | 400 | 480 | 550 | 680 | 820 | 950 | 1180 | 1450 | 2900 | 3100 | 3500 | |
Audible Noise | < 65 dBA (At 1 M) | < 67 dBA (At 1 M) | < 70 dBA (At 1 M) | |||||||||||
Temperature | 0 to 40°C ( 32 to 104°F) | |||||||||||||
Humidity | 0% – 90% (Non-Condensing) | |||||||||||||
Altitude | <1500 M Above Sea Level | |||||||||||||
FCC CLASS A, EN50091-1,-2 | YES | |||||||||||||
Short Circuit Protection | YES | |||||||||||||
Lightning / EMC Filter | MOV / Input & Output (FCC CLASS A) | |||||||||||||
Galvanic Isolation | Input & Output true Galvanic isolation | |||||||||||||
Indicator & Alarm | LCD, LED, Mimic Display, Buzzer | |||||||||||||
Remote Control / Communication Interface |
Monitoring 1~99 UPS simultaneously / Dry contact, RS232, RS485 |
Different specifications required are available.
All specifications mentioned above are subject to change without prior notice
