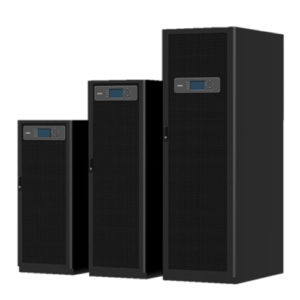

Series A

3-Phase in/3-phase out, double-conversion online UPS
Up to 98% efficiency under High Efficiency mode results in significant energy saving
Intelligent Charging Management* for batteries prolongs battery life
Hot Parallel Connection* technology
Pre-wired for easy installation
Up to 35% smaller than similar competitive solutions
Allows dedication of more floor space to revenue producing equipment

MODEL		ELAN 15K	ELAN 15KS	ELAN 20K	ELAN 20KS	ELAN 30K	ELAN 30KS	ELAN 40K	ELAN 40KS	ELAN 60KS	ELAN 80KS
CAPACITY		15KVA/ 13.5KW		20KVA/18KW		30KVA/27KW		40KVA/36KW		60KVA/54KW	80KVA/72KW
INPUT	Nominal Voltage	380/400/415 V_AC(L-L)(selectable)
	Input Voltage Range	201-478V_AC(L-L)
	Frequency Range	42~72Hz
	Input Wiring	3 phases + Neutral + PE (TN, TN-S, TN-C, TN-C-S, TT)
	Current Distortion (THDi)	<5%
OUTPUT	Output Power Factor	0.9
	Nominal Output Voltage	380/400/415 V_AC(L-L)(selectable)
	Voltage Regulation	±1% @ balanced static load
	Frequency Range	50/60 Hz ± 0.005Hz
	( Battery Mode )
	Current Crest Ratio	3:01
	Voltage Distortion (THDv)	2% @ linear load, <5% @ non-linear load
	Output Waveform	Pure sine wave
	Parallel Operation	Up to 4 units
EFFICIENCY	Inverter Mode	94%
	ECO Mode	98%
BATTERY	No. of Internal Battery	64x12V/9Ah	N/A	64x12V/9Ah	N/A	96x12V/9Ah	N/A	128x12V/9Ah	N/A
	Recharge Time (to 90%)	10 hours	N/A	10 hours	N/A	10 hours	N/A	10 hours	N/A
	Charging Current	5.3A				8A		10.6A		16A	24A
TRANSFER TIME	Battery ↔ Inverter Mode	0ms
	Inverter ↔ Bypass Mode	0ms
	ECO ↔ Inverter Mode	4ms
DISPLAY		Graphical LCD, 4x LEDs
AUDIBLE ALARM		Yes
DIMENSION	WxHxD (mm)	500x960x706				500x1230x706		500x1500x706		600x1876x796
NET WEIGHT		240kg	72kg	240kg	72kg	340kg	88kg	455kg	120kg	202kg	245kg
ENVIRONMENT	Operating Temperature	0-40°C
	Noise Level	≤55dB @ 75% Load				≤62dB @ 75% Load				≤65dB @ 75% Load
INTERFACE	RS232/USB	Yes
	External Slot	Yes
	Emergency Power Off	Yes
	Building Alarm	Yes
